GEA is presenting the complete range of its KOB series, a new cost-efficient line of homogenizers reaching up to 400 bar. The series is designed to give small and medium production plants access to industrial-grade performance at an attractive investment level. With KOB models 11, 22, 45 and 90 available, the homogenizers offer a compact, hygienic and flexible solution for a broad range of food, beverage, chemical and personal care applications, including homogenizing and feeding spray dryers. Optimized and compact mechanical construction, lower noise levels, simplified maintenance access and efficient power use create a strong value proposition for existing plants and new lines alike.
Built for performance: up to 400 bar and flexible valve options
At the core of the GEA KOB homogenizers is a robust high‑pressure design up to 400 bar, ensuring stable and efficient homogenization for demanding, moderately viscous and abrasive applications. To meet the requirements of diverse applications, higher‑efficiency homogenizing valve technology and more wear‑resistant materials are available as options. The base configuration uses competitively priced wear-resistant parts, providing an economical choice for standard, non-abrasive products, while optional high-wear-resistant materials extend service life in more demanding, abrasive formulations.
Compact machines engineered for efficiency, low noise and reduced operating costs
The KOB homogenizer series is designed for processors who need adequate and fit-for-purpose homogenization performance within a limited footprint. Its compact architecture is enabled by an optimized crankcase and gear-reducer design that delivers high mechanical efficiency while generating minimal heat, noise and vibration. As the drive compartment requires neither oil cooling nor forced-air ventilation, the machines rely on fewer auxiliary components and deliver lower installation, maintenance, energy and utility demands.
A newly engineered frame and cladding, developed using advanced structural analysis, further contributes to low vibration levels and long-term durability. The use of poppet-type pumping valves enhances flow characteristics and feeding stability, significantly reducing noise and cavitation while improving volumetric efficiency and extending component life.
Together, these mechanical considerations result in a homogenizer family that reduces energy consumption, simplifies daily operation and maintenance, and minimizes downtime. With their compact footprint and minimal maintenance-space requirements, KOB machines are well suited for both new installations and the replacement of legacy homogenizers without major layout modifications.
Hygienic, CIP/SIP-capable design
Designed to meet demanding sanitary requirements, every KOB model is available with CIP and SIP capabilities and can be configured to meet 3-A sanitary standards. Steamable full-stroke barrier chambers provide aseptic product handling. The machines can be equipped with a second-stage pressure gauge and pressure transmitters on both homogenization stages as well as the outlet, for process automation and control. This makes the KOB homogenizers ideal for a broad range of products and processes such as milk, dairy ingredients, beverages, plant-based formulations and selected chemical, personal care and cosmetic products in manual, semi-auto and fully automated production lines.
Modular automation for easy integration
The KOB series supports a wide range of automation levels, from simple motor-starter solutions to full PLC/HMI control. Connectivity options enable seamless integration into SCADA and plant-wide automation systems, allowing processors to choose the right level of digitalization for their operation. This modularity helps ensure fast installation and smooth retrofitting into existing production lines.
Picture Overview (Download link for high resolution versions of 2 pictures)

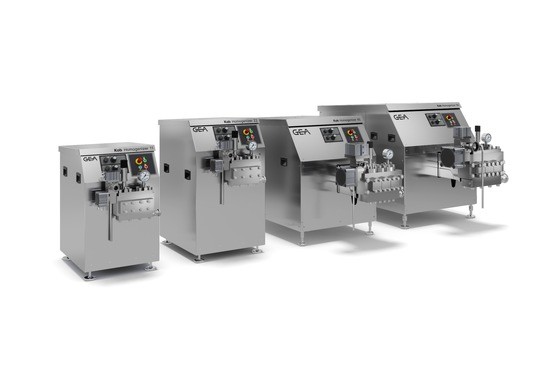

Pic. 1: The new GEA KOB homogenizer series includes four models reaching up to 400 bar with a capacity starting from 700 up to 18.000 L/h. Source: GEA
Pic 2: Range of models and capacities of the new GEA KOB series. Source: GEA
